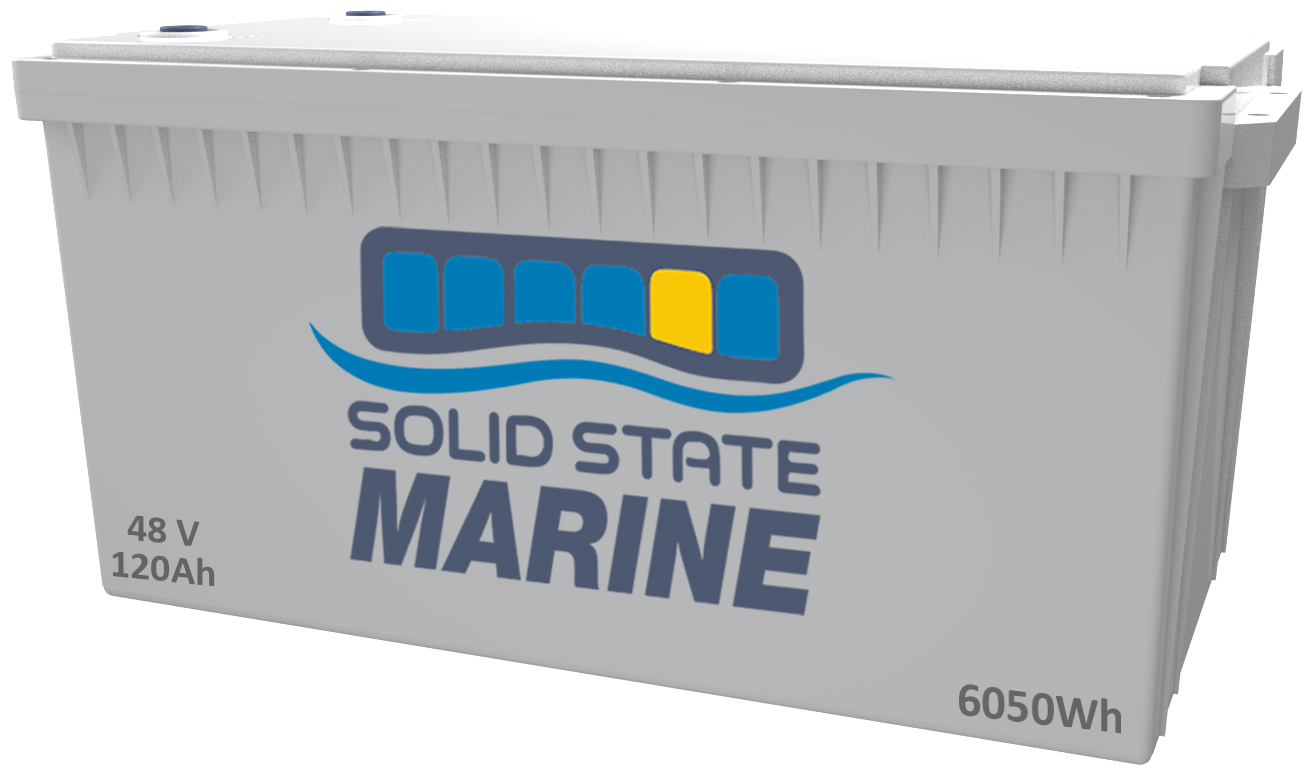

Battery
Cell Type: Solid State Lithium
Rated Capacity:120Ah
Nominal Voltage:50.4 V
Energy:6048 Wh
Weight Approx:60 lbs
Size:L120.75" x W11.13" x H10.88" inch (Group 8D size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class:IP67
Terminals:M8 bolts
Max. Expansion: Up to 4 Batteries Parallel, 2 in Series
Warranty:8 Years Manufacturers Defects, 5 year FREE replacement
Cycle Life:3000 cycles at 100% DOD (Depth of Discharge)
Internal Resistance:≤40mΩ
Certifications UL 1642, UN38.3
ABYC Official Cert: Yes
BMS
Peak Discharge Current:500A
Continuous Discharge Current:250 A
CCA equivalent:1000
CHARGE
Charge Method:CC/CV
Charge Voltage:16.8V±0.6V
Recommend Charge Current:Up to 100A
TEMPERATURE
Charge Temperature:-4℉ to 155℉ / -20℃ to 70℃
Discharge Temperature:-4℉ to 155℉ / -20℃ to 70℃
Storage Temperature:-4℉ to 113℉ / -20℃ to 40℃
Low-Temperature Protection:Yes (-4℉/-20℃)
Low-Temperature Charging Protection Auto Recovery:Yes (32℉/0℃)
