$2,599.00
$2,599.00

8 Year Warranty

Free Shipping / Returns in North America

Built And Shipped Within 5 - 7 Business Days

Bluetooth Incl. / NMEA 2000 Option

Battery Communication Options: Bluetooth Incl.

Model: 12V330Ah

Weight: 52lbs

Size: 6TL (L13.75" x W4.375" x H11.375")

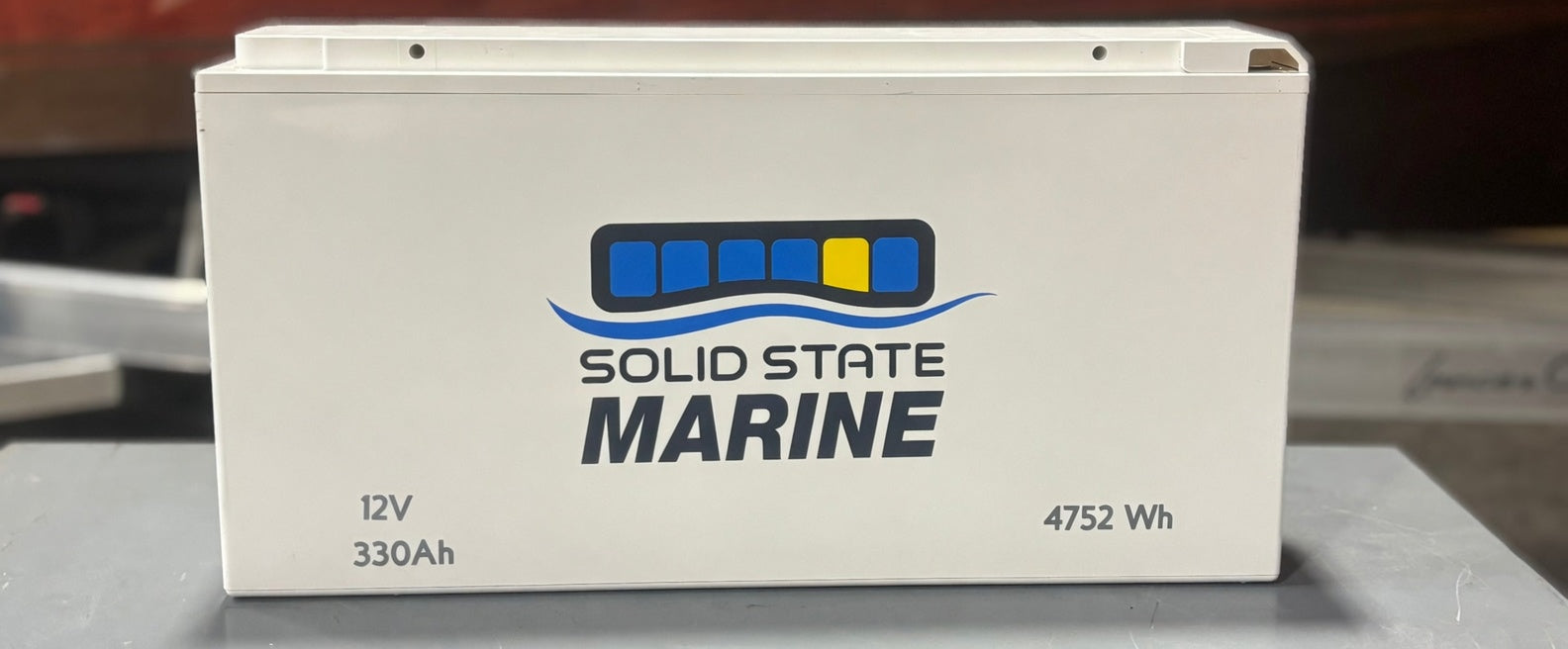

Introducing the Ultimate Marine Battery

Experience unparalleled performance with Solid State Marine’s revolutionary solid-state technology. This versatile battery is the perfect replacement for AGM or LFP batteries, suitable for both starting engines and deep cycle applications. With 1000 cold cranking amps (CCA) and a high continuous discharge rate of 250A, and 500A Peak Current ensures robust and reliable performance.

More Power / Less Weight: Delivers over 4800 Wh of power while weighing just 52 lbs., all within a compact 6TL package!

Greater Safety: Solid state batteries use a solid electrolyte and are inherently safer than traditional lithium or lead acid batteries.

Superior Temperature Performance: Operates down to -4°F without the use of a heater! And operates in extreme conditions up to 155°F

Bluetooth: IOS and Android Apps control and monitor battery functions such as State of Charge

Features

Perfect for: Trolling Motors, Stabilizers, Bow Thrusters, Starting Motors, House Batteries, Solar Systems/Off-Grid and other outdoor activities

Replaces your Lead Acid or Traditional Lithium Batteries: 15% higher energy & 50% lighter than lithium & 300% lighter than Lead Acid.

Highest Energy Density: 100 Wh/lbs., 10X more than similar Lead Acid batteries and almost 2X more than lithium.

Low-Temperature Cut-Off Protection: cuts charging and loads when below -20°C/-4°F, extending battery life

Grade-A cells only, 3000+ cycles at 100% DOD

20+ BMS Protections: protects against low temperature, high temperature, short circuit, overvoltage, overcurrent, and undervoltage + more.

Auto Overload Protection & Recovery-No User Intervention Required

IP 67 Rating: moisture, dust, water, and salt spray resistance for reliability in humid environments.

ABYC Compliant:  All SSM marine batteries meet ABYC standards, ensuring the highest safety for your boating or sailing needs.

Battery

Cell Type: Solid State Lithium

Rated Capacity:300Ah

Nominal Voltage:14.4 V

Energy:4320 Wh

Weight Approx:43 lbs

Size: Group 31 (cover L13.5" x W7.28" x H10", bottom 12.75"L, 6.5"W)

Housing Material: ABS (Flame Retardant Plastic)

Protection Class:IP67

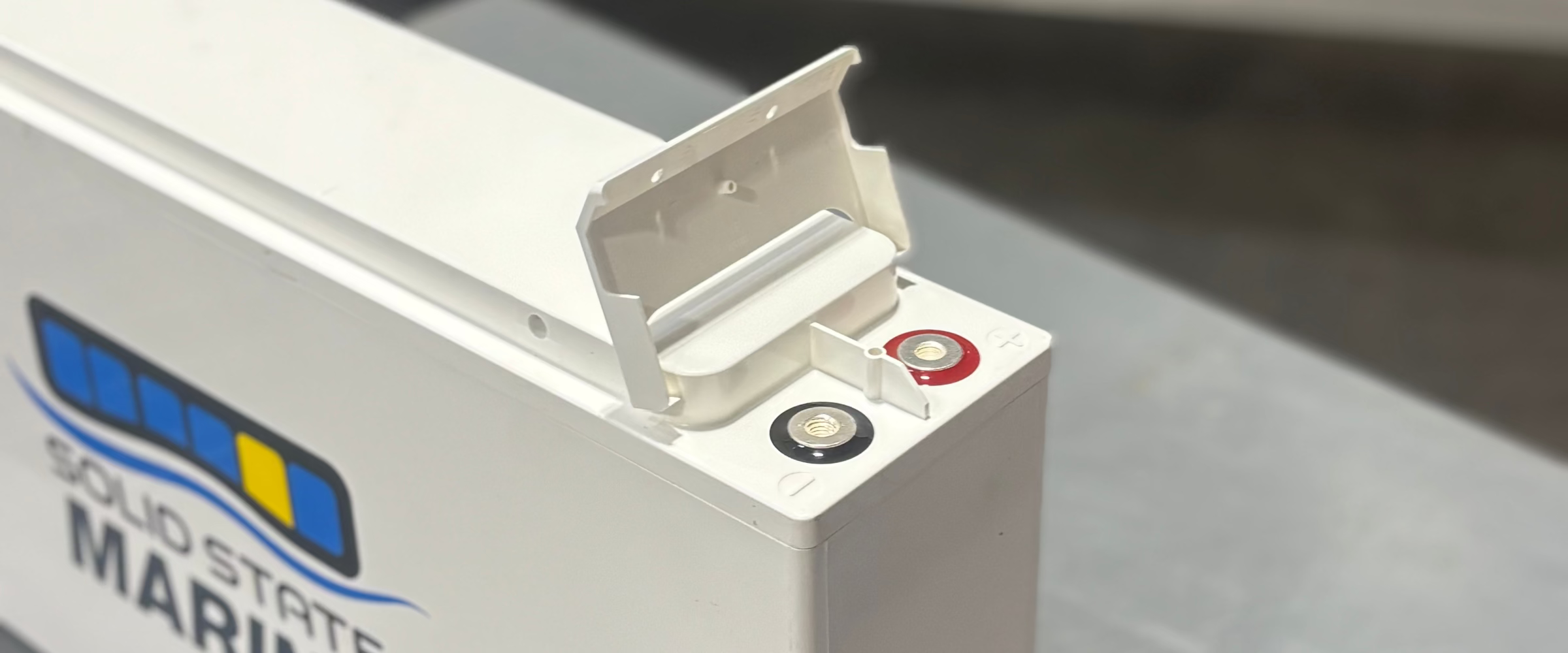

Terminals:M8 bolts

Max. Expansion: Up to 2 Batteries Parallel, 2 in Series

Warranty:8 Years Manufacturers Defects, 5 year FREE replacement

Cycle Life:3000 cycles at 100% DOD (Depth of Discharge)

Internal Resistance:≤40mΩ

Certifications UL 1642, UN38.3

ABYC Compliant: Meets ABCY standards

BMS

Peak Discharge Current:500A

Max. Continuous Discharge Current:300 A

CCA equivalent:850

CHARGE

Charge Method: CC/CV

Charge Voltage:16.5V

Recommend Charge Current: Up to 300A (1C)

TEMPERATURE

Charge Temperature:-4℉ to 155℉ / -20℃ to 70℃

Discharge Temperature:-4℉ to 155℉ / -20℃ to 70℃

Storage Temperature:-4℉ to 113℉ / -20℃ to 40℃

Low-Temperature Protection: Yes (-4℉/-20℃)

Low-Temperature Charging Protection Auto Recovery: Yes (-4℉/-20℃)
